NEXT GENERATION IN REVERSE OSMOSIS

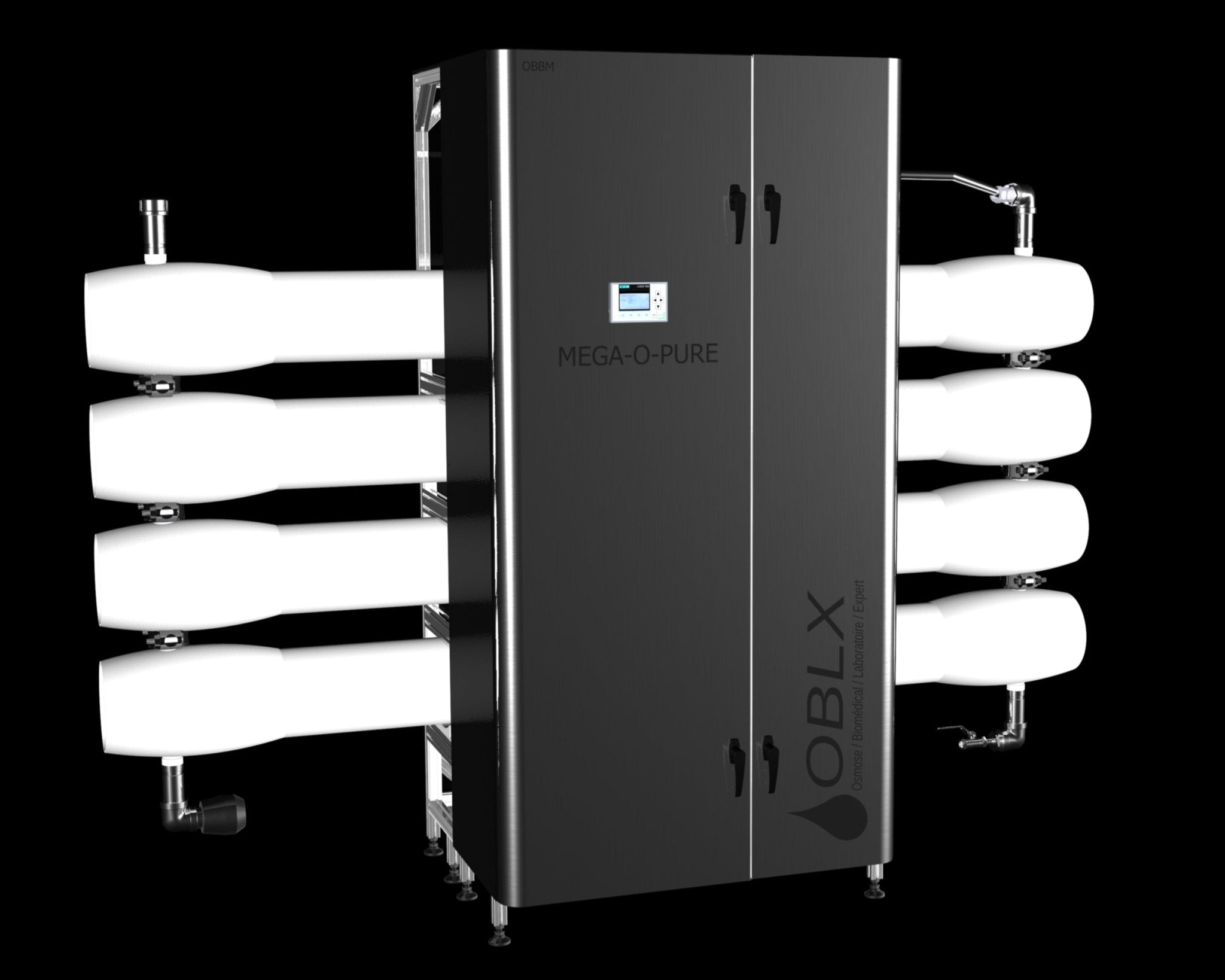

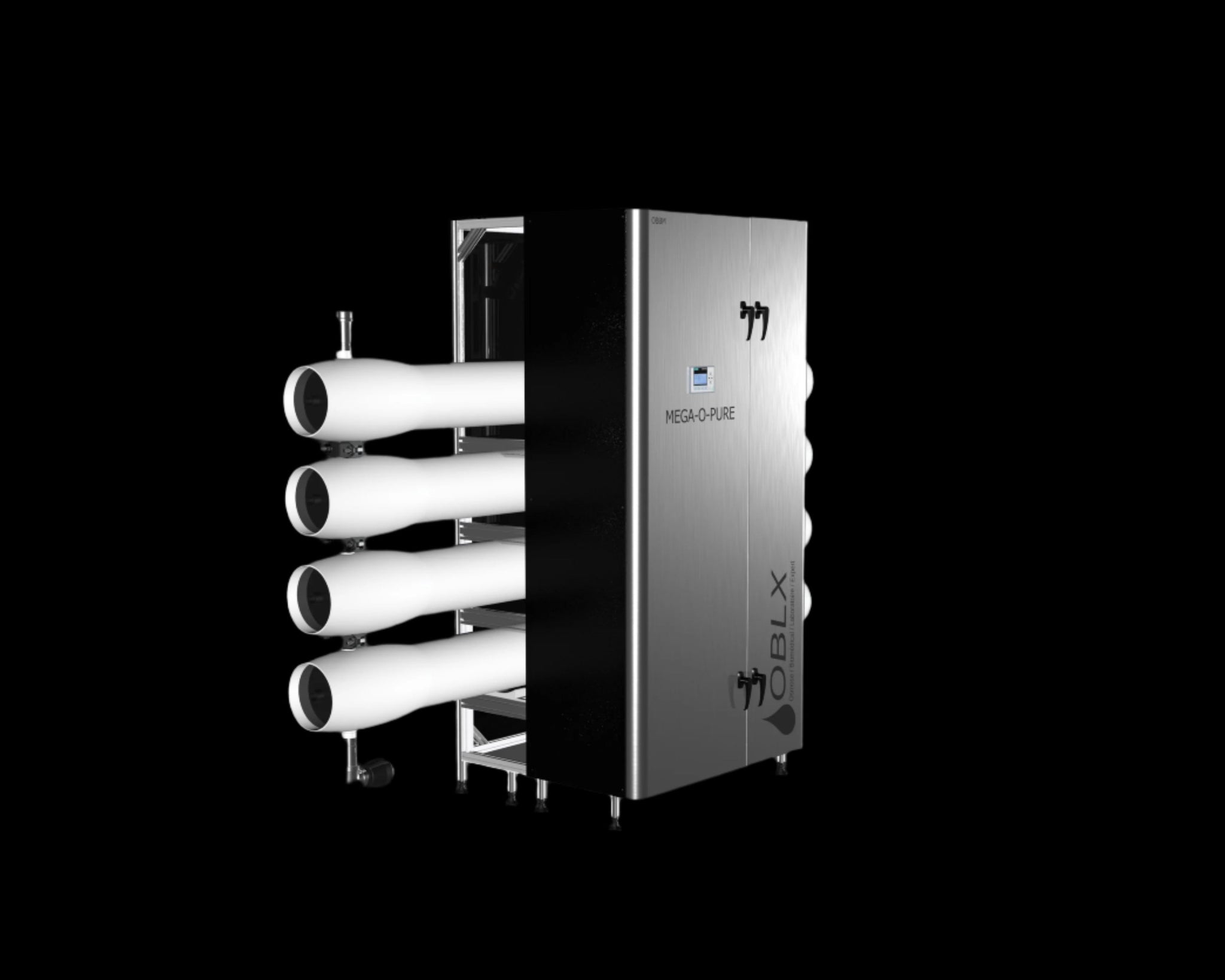

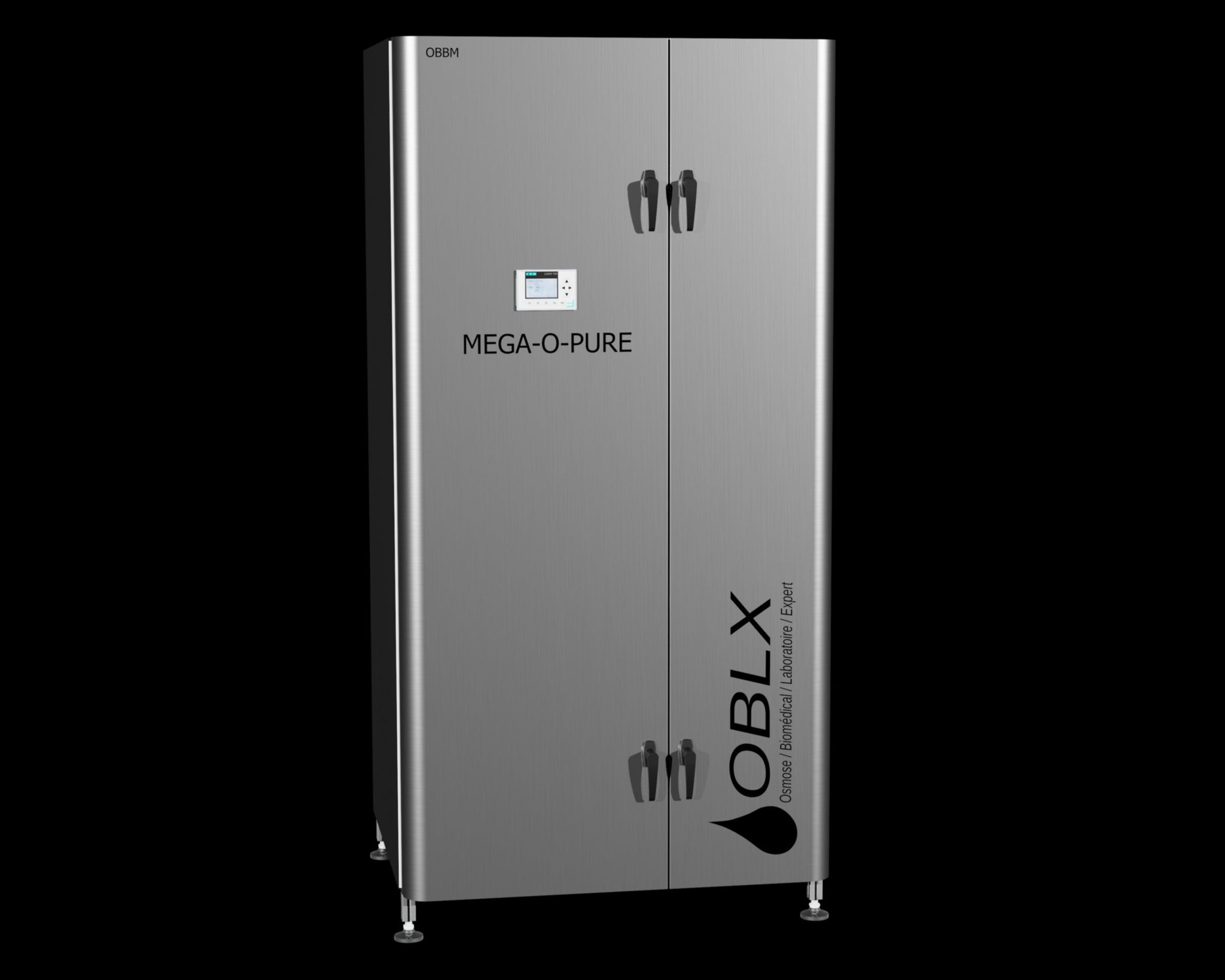

MEGA-O-PURE reverse osmosis is the next generation in reverse osmosis systems. All the production parameters are digital making it easy to connect to a central building automation system and/or for data logging purposes. The MEGA-O-PURE can be configured to be fully automatic or manually controlled (actuated valves, variable frequency drive, etc. ) depending on customer needs and applications.
The MEGA-O-PURE can evolve by adding vessels modules. It can grow depending on your future production needs without the initial investment.
MEGA-O-PURE is streamline design for sanitary purposes and ease of cleaning in an enclosed cabinet for a low noise level (65-75 dB) depending on pump model.
The MEGA-O-PURE offers two different algorithm of our proprietary Smart Water Saving Technology (SWST); 1. Flow based 2. Concentration based
MEGA-O-PURE reverse osmosis system are pre-configured for tank feed or direct feed with loop return.
- Smart adjusting reject rate, proportional to pure water consumption
- Capacity to evolve by adding vessels modules
- Adjustable recovery between 15% to 95%
- Streamline design for sanitary purpose
- Low energy consumption
- Modbus, Ethernet
Applications
- USP Purified Water
- USP WFI water
- Highly Purified Grade Water for rinsing
- Medical Device Production
NOTE: Production capacity of the MEGA-O-PURE is from 20 to 160 lpm @ 25 celcius using Dow Filmtec XLE-440 membrane. Different types of membranes can be used depending on customer needs such as reverse osmosis and/or nanofiltration membranes.
